Plug and play, high performance, Low power consumption Compliant with IEEE802.3, IEEE802.3u, IEEE8.3ab,IEEE802.3z Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX),IEEE 802.3z/AB 10/100/1000Base-T 1000Base-SX/LX standards Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data. Automatic MDI/MDI-X crossover Distances up to: Depend on SFP LC/SC/FC/SToptical connectors DC powered

Features Dual independent hot plug power modules as default Supports 16 media converters Supplying the converters or powers to be plugged and played 2U high: 19-inch standard design Stable performance, large capacity of power supply, and ease of management and maintenance Completely status LED indicator, easy to install and maintain Low power loss and good heat dissipation  The MR-R1600D-2U supports card-based network integration with a ethernet switch rack design, sfp module compatibility, and dual hot-plug power modules for stable management.

Features Dual independent hot plug power modules as default Supports 14 media converters Supplying the converters or powers to be plugged and played 2U high: 19-inch standard design Stable performance, large capacity of power supply, and ease of management and maintenance Completely status LED indicator, easy to install and maintainLow power loss and good heat dissipation The MR-R1400D-2U rack chassis supports 14 modules with dual hot-plug power, stable network switch integration, and maintenance-friendly ethernet switch system design for transceiver deployments.

Support IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X; IEEE802.3af; IEEE802.3at; Support 10/100/1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX; Transmission distance: Multimode(MM): Up to 0.55KM Max; Singlemode(SM): Up to 120KM Max； POE power pin: 1/2+,3/6- (Option 4/5+,7/8-)； RJ45 port support direct and cross automatic recognition function (AUTO-MDIX); Fanless design, its own low heat, work stability and durability stronger; Trouble-free working hours (MTBF)> 50,000 hours, in line with carrier-class operating standards; Gigabit ethernet switch media converter with 1 RJ45 PoE port and 1 SFP slot, supporting 10/100/1000Mbps links for stable network switch fiber integration.

Support IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X; IEEE802.3af; IEEE802.3at; Support 10/100/1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX; Transmission distance: Multimode(MM): Up to 0.55KM Max; Singlemode(SM): Up to 120KM Max； POE power pin: 1/2+,3/6- (Option 4/5+,7/8-)； RJ45 port support direct and cross automatic recognition function (AUTO-MDIX); Fanless design, its own low heat, work stability and durability stronger; Trouble-free working hours (MTBF)> 50,000 hours, in line with carrier-class operating standards; Gigabit poe switch media converter with SC multimode fiber, IEEE 802.3af/at support, 25.5W output, and stable 10/100/1000Mbps copper-to-fiber links for network switch integration.

Features 10/100/1000M smart media converter 1*1000M SFPport ,1*10/100/1000M RJ45 1000M Dual fiber Singlemode,850nm,1310nm,1550nm, LC, 0~120KM Support LFP function, Auto MDI / MDI-X Supporting Far End Fault function on FX port Supporting the transmission of extra-long packets up to 1600 bytes Supporting store and forward mode / transparent transfer mode selectable by DIP switch Provides user accessible settings for TP port configuration, disabling link fault pass-through function Extremely low power consumption (less than 2W), low heat, reliable quality, stable performance, and long lifetime Plug and Play: Easy and fast installation

Adopt high-performance US Marvel chip to achieve non-blocking transmission switching performance and ensure higher security and stability of data transmission Support Ethernet port 10Gbase－Tto10Gbase-SR/LR/ER/ZR The fiber port supports 3R function (equalization amplification, clock extraction, integer regeneration), and the data transmission litter is small Transparent transmission of data with small delay Supports 850, 1310, 1550nm and ITU T specified CWDM/DWDM wavelengths Support for super long frames Support DMI function of optical module Support Loopback and return to functional testing Support SFP+/XFP different interface optical modules Support 5-20V wide voltage power supply Support built-in power supply enclosure Support centralized power supply management of racks Support external power supply

Features* Support the interconversion between 100M / 1G/2.5G Base-T and 2.5G Base-SX / LX;* One full-duplex 2.5Gbps light port, one 100M / 1G / 2.5G adaptive electric port;* 100M / 1G/2.5G rate adaptation, MDI / MDI-X adaptation, full / half-duplex adaptation;* Optical links and electrical links have a complete connection / active status indicator light;* Optical port supports single mode / multimode, single fiber, double fiber* Support QoS to ensure data packet transmission;* Support for broadcast storm suppression;* Support IEEE802.3x flow control, back pressure flow control;* Support for 12V DC input;* Support for up to 4KV of port lightning protection;* Support for low-latency transmission, but also has the isolation and protection function;* Using low power consumption chip, low heat rate, can work stably for a long time

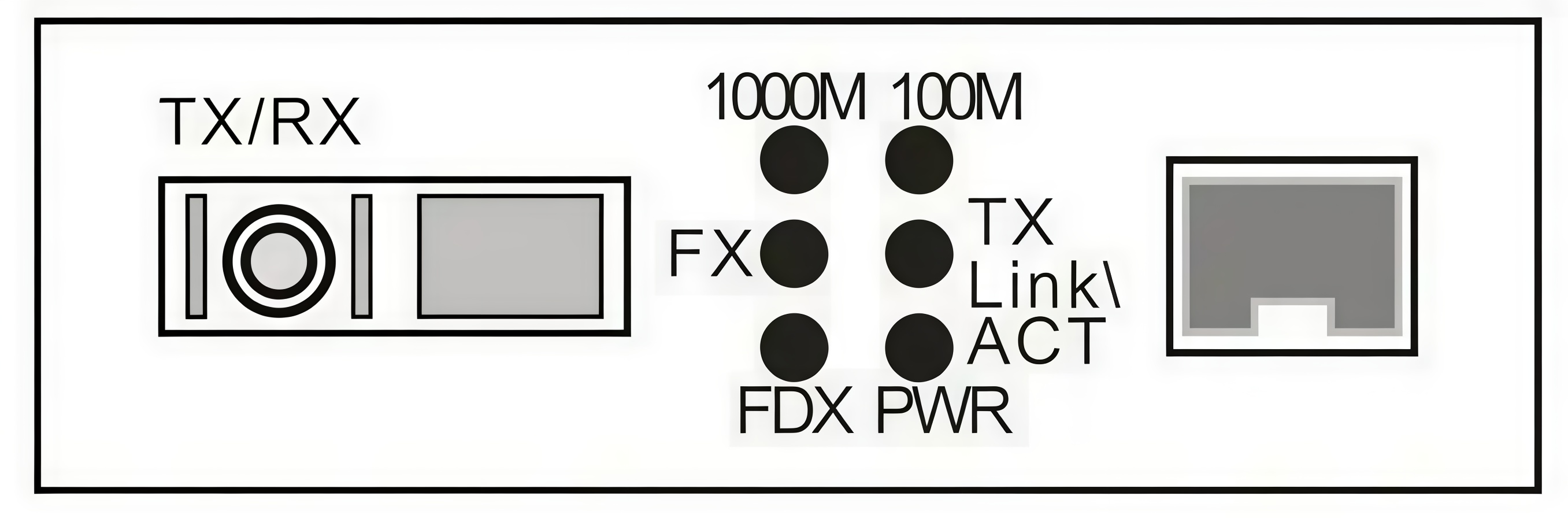

Features 10/100/1000M smart media converter  1*1000M optical port ,1*10/100/1000M RJ45 1000M Dual fiber Singlemode,1310nm,SC, 0~20KM Support LFP function, Auto MDI / MDI X LFP (Link Fault Pass-Through) for indication of a link failure on the transmitting path of the FX receiving circuitry. Supporting Far End Fault function on FX port Supporting Transparent to 802.1Q VLAN tagged packets Supporting the transmission of extra-long packets up to 1600 bytes Supporting store and forward mode / transparent transfer mode selectable by DIP switch Provides user accessible settings for TP port configuration, disabling link fault pass-through function Extremely low power consumption (less than 2W), low heat, reliable quality, stable performance, and long lifetime Gigabit single-fiber converter with SC 1310nm optics and RJ45 auto-negotiation, built for stable ethernet switch links and efficient network switch fiber integration.

Features Auto-negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half DuplexUTP port supports MDI/MDI-X auto crossoverIndicator function of link fault (LFP): When the optical fiber or UTP is at fault, the converter could stop all the linkMultiple Optical Transceiver could be chosen: SC, ST or FCAdopts WDM technology, transmitting and receiving data on one single fiberEasy-to-view LED indicators to provide monitoring of network system easilyCompliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-BX StandardsStatus LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network statusInternal Circuit of prevented thunder could greatly reduce the damage of the converter caused by thunderbolt inductionROHS compliant and Lead-Free10/100M media converter for copper-to-fiber links, supporting single-fiber WDM transmission and stable integration with ethernet switch, network switch, and transceiver deployments.

Features Ports: Provide 2*10/100/1000Mbps Ethernet ports   PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant Total Power: Total power budget of 30W for all singe PoE ports Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc Surge protection: Protect the device from lighting surges and others electrical hazards Considerate Design: Exquisite compact size.wall mounted with fanless design Easy to use: Plug and play, No configuration required This poe switch alternative delivers ethernet switch data and power over one cable with network switch-grade Gigabit support, 30W budget, and wall-mountable reliability for IP cameras, APs, and VoIP.

Features Ports: Provide 1*Gigabit PoE++ ports, 1*Gigabit RJ45 Uplink PoE Standard: IEEE802.3af/at/bt Power over Ethernet (PoE) Compliant Up to 90W Power Voltage: Ultra wide pressure input DC 10V~54V Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX. Wide Application: Designed for Long-Range Wifi AP and PTZ IP Security camera, VoIP etc Surge protection: Protect the device from lighting surges and others electrical hazards Working Temperature: -40 to 75 degrees operating temperature Considerate Design: IP40 Industrial design with dual power input

Features 8 ports 10/100/1000Mbps RJ45 ports with 2*10/100/1000M Uplink ports, 1 port 1000Mbps SC AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators for monitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast Storm Control Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDC power inputs RedundantPower Inputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment or higher requirement -40℃-85℃operating temperaturerange 5-YearWarranty

8 ports 10/100/1000Mbps RJ45 with 1 Uplink port, 1 port 1000Mbps SFP AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators formonitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast StormControl Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDCpower inputs RedundantPowerInputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment orhigher requirement -40℃~+85℃operating temperaturerange 5-Year Warranty

8 ports 10/100/1000Mbps RJ45 with Auto Uplink , 2 port 1000Mbps SFP AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators formonitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast StormControl Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDCpower inputs RedundantPowerInputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment orhigher requirement -40℃~+85℃operating temperaturerange 5-Year Warranty

Features 8 ports 10/100/1000Mbps RJ45 ports with 2*10/100/1000M Uplink ports, 2 port 1000Mbps SC AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators for monitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast Storm Control Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDC power inputs RedundantPower Inputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment or higher requirement -40℃-85℃operating temperaturerange 5-YearWarranty

4 ports 10/100/1000Mbps RJ45 with Auto Uplink , 2 port 1000Mbps SC AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators formonitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast StormControl Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDCpower inputs RedundantPowerInputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment orhigher requirement -40℃~+85℃operating temperaturerange 5-Year Warranty

4 ports 10/100/1000Mbps RJ45 with Auto Uplink , 2 port 1000Mbps SFP AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators formonitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast StormControl Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDCpower inputs RedundantPowerInputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment orhigher requirement -40℃~+85℃operating temperaturerange 5-Year Warranty

2 ports 10/100/1000Mbps RJ45 with Auto Uplink , 2 port 1000Mbps SFP AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators formonitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast StormControl Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDCpower inputs RedundantPowerInputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment orhigher requirement -40℃~+85℃operating temperaturerange 5-Year Warranty

4 ports 10/100/1000Mbps RJ45 with Auto Uplink , 1 port 1000Mbps SC AutomaticMAC addresslearning and aging Automatically supportIGMP(Multicasting) 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X LEDindicators formonitoring power/link/activity Supports10/100/1000Mbps-Full/Half-duplex Supports Wall-mount andDIN-Railinstallation for lightning protection SupportsDaisy-Chain connection SupportsBroadcast StormControl Superlighteningprotection, IP40 protection Excellentheat elimination without cooling fan Redundant dualDCpower inputs RedundantPowerInputs Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City Harshindustrial environment orhigher requirement -40℃~+85℃operating temperaturerange 5-Year Warranty

Features Hot pluggable Bit rate support from 1G to 11.3Gbps Pre-terminated twin axial cable / fiber cable Operating environment temperature 0 ~ 70℃ Low power consumption SFP+ housing with enhanced EMI shielding Single 3.3V power supply Programmable EEPROM for serial identification

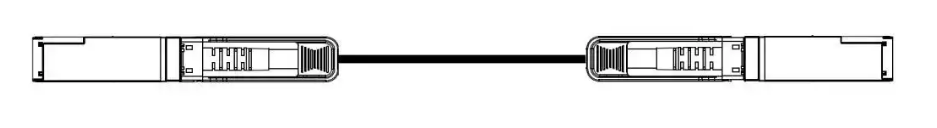

Features Hot Pluggable SFP+form factor Wire AWG:30AWG,24AWG Available length range5M~7M Passive Copper TwinaxCable Operating data rate3125Gbps Power supply：+3.3V Maxpower dissipation<0.1W Small diameter cable design Commercial temperature range 0°C to 70°C 10G SFP+ DAC supports network switch and ethernet switch links with passive twinax design, 3.3V power, and 30AWG/24AWG options for stable 10G connectivity.
